Anomalous, or "peg-shaped," maxillary lateral incisors, which can pose restorative challenges to dentists, are prevalent among approximately 2% of the population.1-3 For these patients, compromised esthetics resulting from the unpleasant shape and related diastemas is a common chief complaint. In many cases, the treatment is multidisciplinary and involves both restorative and orthodontic management. Based on Chu's research regarding the mean tooth width of the maxillary and mandibular dentition, German and colleagues determined the ideal maxillary incisal proportions with a formula in which the width of the lateral incisor equals the width of central incisor minus 2 mm.4,5 When the final shape of restored anomalous lateral incisors is achieved in this ideal proportion, subsequent orthodontic treatment to close the diastemas will result in a more predictable situation.
Various solutions for the restoration of anomalous lateral incisors have appeared over the years. However, in accordance with the principles of minimally invasive dentistry, a direct composite buildup solution seems to be the most appropriate6 when compared with indirect composite veneers or porcelain laminate veneers, particularly for younger patients. There are a variety of layering techniques that can be used, from free hand stratification or use of a silicone index to direct-indirect veneers. The following case report presents the use of the index cutback technique, which is a three-dimensional guided layering approach.7 By the means of a transparent silicone index of the full wax-up and one of the dentin core wax-up, the shape and thickness of the layering is controlled to achieve a predictable result. This is a reliable and reproducible technique for the restoration of anomalous lateral incisors prior to orthodontic treatment.
Case Report
A 16-year-old female patient presented with the chief complaint that she was dissatisfied with the appearance of her anomalous maxillary lateral incisors (teeth Nos. 7 and 10) and multiple diastemas (Figure 1 through Figure 4). She had been referred for restorative treatment after an initial consultation with the orthodontist. Her first restorative appointment was dedicated to data collection, which included a health history and physical examination as well as the acquisition of photographs (facial, dentofacial, dental), videos (chief complaint, F sound, S sound), vinyl polysiloxane (VPS) impressions, a panoramic radiograph, a bite registration, and a facebow registration. The clinical examination revealed that both of the patient's maxillary lateral incisors were peg-shaped. After a discussion about the risks and benefits of different treatment options, such as direct composite restoration, indirect composite veneers, and porcelain laminate veneers, she chose to have her maxillary lateral incisors treated with direct composite buildup restorations. The index cutback technique was chosen for this case instead of a freehand technique in order to create a new shape according to an ideal wax-up but also to be able to control the thickness of the enamel layer.7

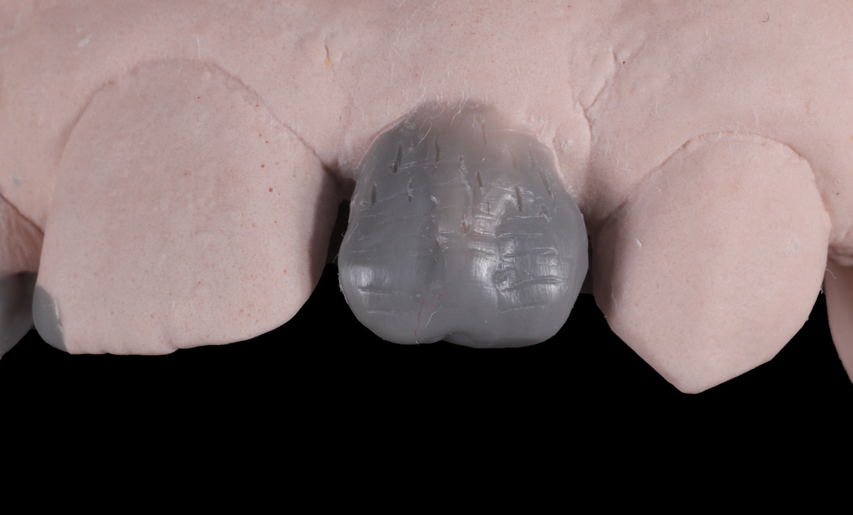

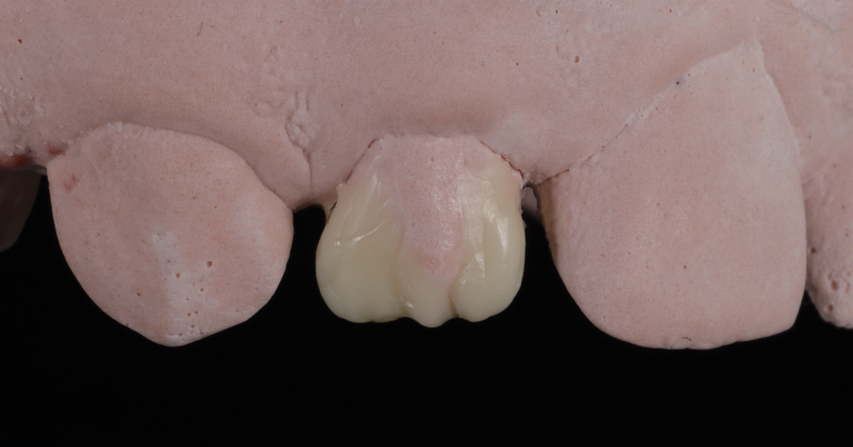

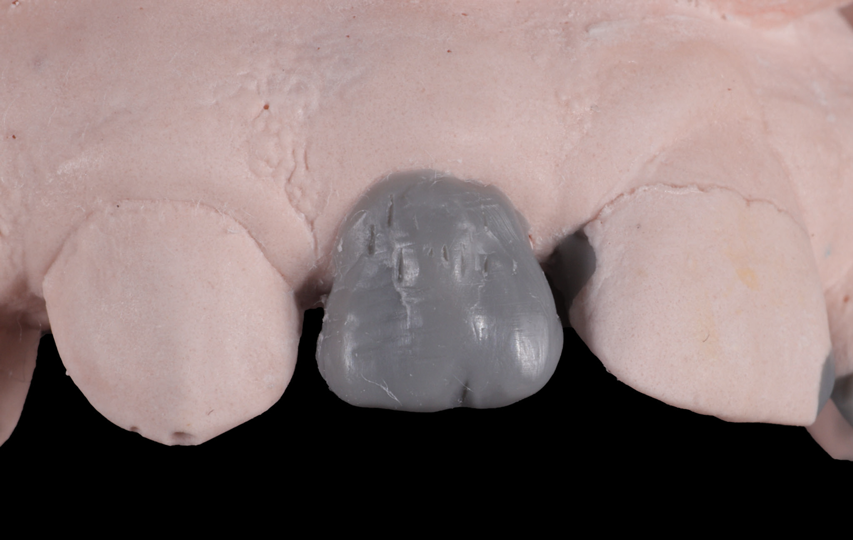

Impressions were made with VPS impression material and used to pour two models with plaster. Next, a diagnostic wax-up was created based on the calculation of the ideal width proposed by German and colleagues.4 In this case, the patient's central incisors were both 9.5-mm wide; therefore, the ideal width of the lateral incisors was 7.5 mm. This first wax-up is referred to as the full wax-up (Figure 5 and Figure 6). A second wax-up was then created on the second model to represent the dentin core. This second wax-up is referred to as the cutback wax-up (Figure 7 and Figure 8).

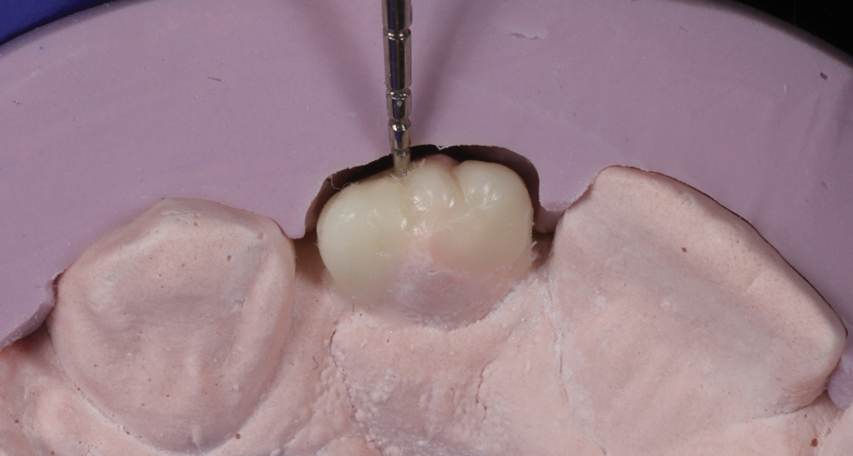

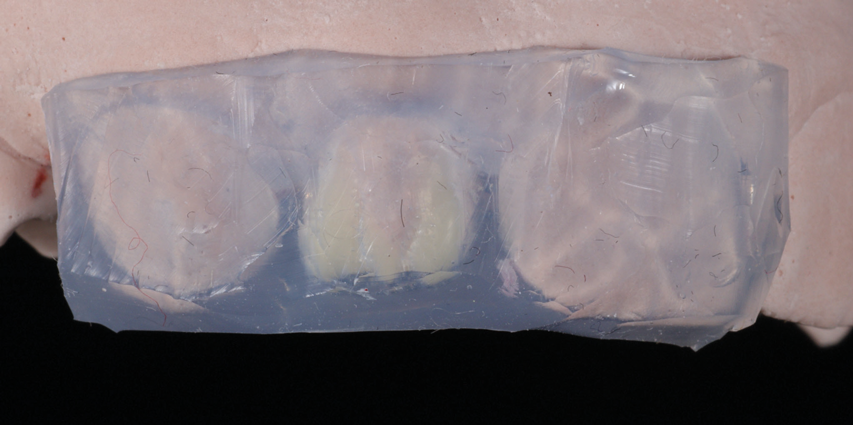

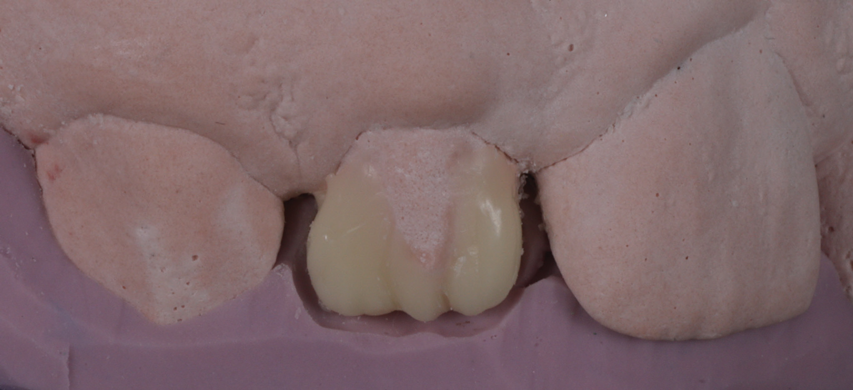

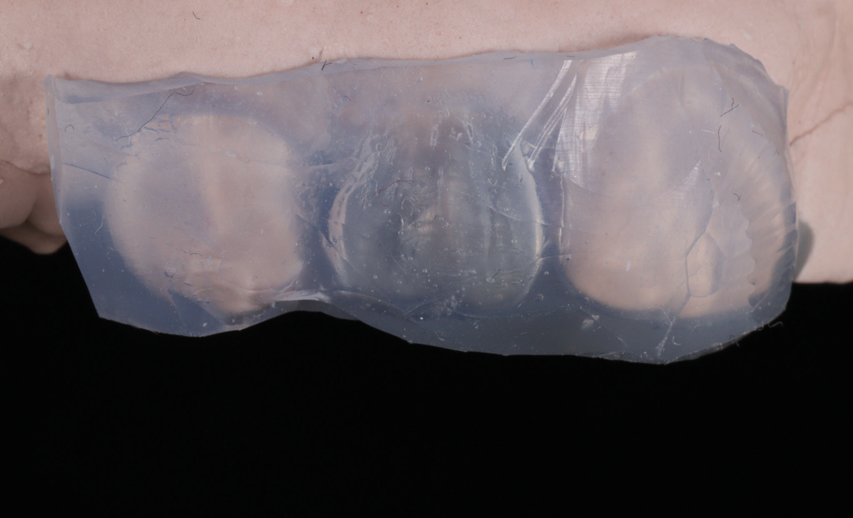

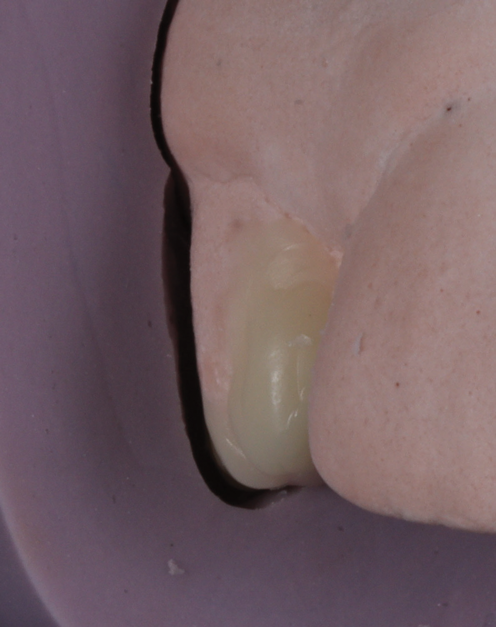

In order to verify the thickness of the enamel mass that would be created, three sets of putty guides were made: one for the incisal edge, one for occlusal control, and one for sagittal control (Figure 9 through Figure 14). The thickness of the enamel material that needed to be placed was 0.2 mm in the cervical third, 0.5 mm in the middle third, and 0.8 mm in the incisal third. In the incisal third, 1 mm was left occlusally.8,9 In addition, two sets of silicone indices were made-one based on the full wax-up and one based on the cutback wax-up (Figure 15 through Figure 18).
At the second appointment, the selected dentin and enamel shades were verified by placing small amounts of composite that were about 0.5-mm thick on the cervical area of the central incisor (Figure 19). After shade selection, isolation was achieved by placing a rubber dam from first bicuspid to first bicuspid (Figure 20), and the maxillary lateral incisors were disinfected with a 2.0% chlorhexidine gluconate solution and polished with contouring and polishing discs (Figure 21). Next, the surfaces were etched for 15 seconds with a 35% phosphoric acid etchant (Figure 22), and an adhesive agent was placed, softly air-dried, and light-cured for 60 seconds (Figure 23).

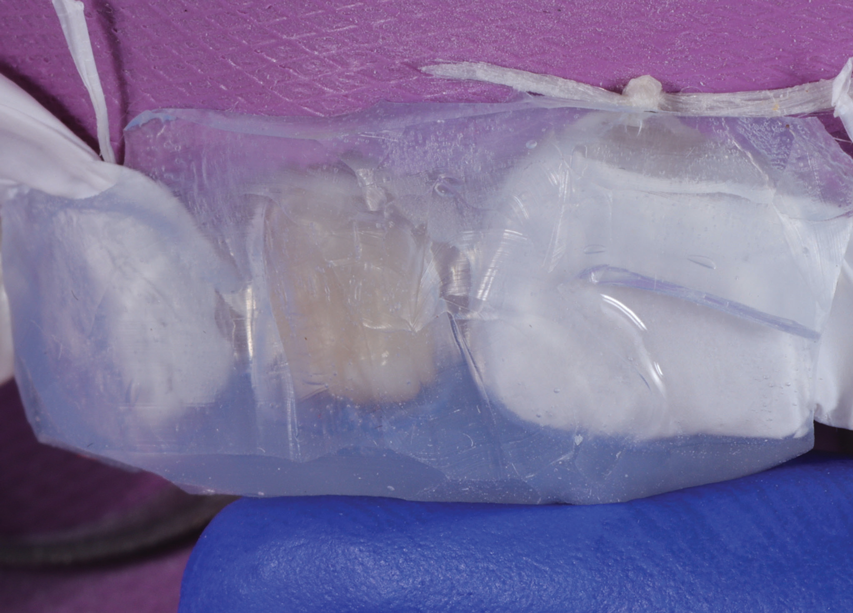

The adjacent teeth were protected by wrapping them with PTFE tape (Figure 24), and the cutback silicone indices were tried in with the tape in place to verify the seating. Once complete seating was verified, the dentin shade composite was placed directly into the right-side cutback index and condensed onto the walls. The index was then seated intraorally, the composite was gently pressed against the tooth, and the material was light cured from the facial and palatal aspects for 60 seconds each (Figure 25). This same series of steps was performed on the maxillary left lateral incisor using the left-side cutback index, and then the excess composite was removed from both teeth with a No. 12 scalpel blade and a flame-shaped carbide finishing bur without water (Figure 26). In order to recreate the incisal edge halo, a white resin color modifier was added to both maxillary lateral incisors with a brush and light-cured for 20 seconds (Figure 27).
After verifying the seating of the full silicone indices, the enamel shade composite was placed into the full right-side index and condensed onto the walls. The index was then seated intraorally and gently pressed around the maxillary right lateral incisor, and then the material was light cured from the facial and palatal aspects for 60 seconds each (Figure 28). To obtain a harder composite surface, glycerin was applied to the restoration, and it was light cured for an additional 60 seconds.10 This same series of steps was then performed on the left lateral incisor. Once both restorations were completely cured, it could be visualized that the macrogeography and microgeography of the wax-up had been transferred well to the facial surfaces (Figure 29).
The rubber dam was removed from the mouth, and the excess material was removed with a No. 12B scalpel blade and a fine diamond bur. Next, the light-reflecting and light-deflecting zones were verified with a pencil and adjusted with finishing burs.11 The occlusion was then verified statically and dynamically using articulating paper and adjusted as needed. After finishing, the immediate postoperative polishing process was accomplished with a series of polishing discs followed by the use of a buffing disc with a diamond polishing paste (Figure 30). Eight days later, the patient returned to the office, and the final polishing was accomplished with polishing discs and diamond polishing paste (Figure 31 through Figure 35).
An assessment of the shape and shade of the final restorations was performed. It was noted that the incisal edges of the restored lateral incisors were not as white as those of the central incisors. Rather than adding additional stain to the lateral incisors, the patient expressed her desire to have some of the white staining removed from the central incisors using a resin infiltration technique after her orthodontic treatment. The final orthodontic treatment for the maxillary arch would involve closing the spaces in the anterior area, protracting the posterior teeth, and finishing in a Class II relationship. For the mandibular arch, the goal would only be to maintain the current positions of the teeth.
Discussion
In this case, the tooth-size calculations were based on the formula proposed by German and colleagues.4 However, the ideal sizes of teeth and methods to simplify this determination have been discussed in many studies. The most commonly used method to determine tooth-size ratio is the Bolton index, in which an anterior ratio of 77.2 and an overall ratio of 91.3 are necessary for proper coordination of the maxillary and mandibular teeth.12,13 One limitation to the Bolton index approach is the necessity of measuring the width of all 6 anterior mandibular teeth and all 6 anterior maxillary teeth.
Another way to approach the calculation of tooth sizes is to use the recurring esthetic dental (RED) proportion, which is a 2-dimensional evaluation of the apparent width of the teeth from a frontal view.14 In the RED proportion approach, the proportion of the successive widths of the teeth as viewed from the front should remain constant as one moves posteriorly.14 The range of suggested RED proportions is between 62% and 80%.14 Other 2-dimensional evaluations that are based on the apparent width of the teeth from a frontal view have appeared in the literature, such as the use of the golden proportion,15,16 which states that the width of the lateral incisor should be 0.618 times the width of the central incisor.
One obvious limitation to these techniques is the imprecision of measuring the "apparent width" of teeth using photographs. Another limitation is that the calculation is time-consuming. When the RED proportion approach is used, prior to the calculations, the dentist must choose the type of teeth desired, which can be very tall, tall, normal, short, or very short. This decision is not always able to be readily determined. Moreover, several studies17,18 have shown that the RED proportion and golden proportion were not the proportions predominantly observed among natural teeth. Because the formula developed by German and colleagues only required the width of the central incisors and was based on population derived tooth-size proportions, it was the easiest and most accurate to use for the purposes of the case presented.
The index cutback technique was chosen in order to create the shade and translucency effect desired. The observed shade of a tooth is a combination of the shade of the dentin and the shade of the enamel.19,20 In order to replicate the overall shade of the adjacent teeth, the clinician has to understand the role that each part plays. Enamel translucency can vary and affect the appearance of the dentin color. Using the index cutback technique in this case also offered other advantages. For example, it is easier to rely on indices than freehand techniques to create tooth anatomy, which includes the line angles, the incisal edge particularities, and the complex surface characteristics. In addition, the index cutback technique adheres to the principles of minimally invasive dentistry, and if re-treatment is required at a later date, it is easier to accomplish than when ceramic restorations are used.
An accurate selection of composite resin materials allows clinicians to closely replicate the various aspects of teeth. The dentin and enamel can vary significantly regarding translucency, chromaticity, and brightness. Teeth may consist of several layers, including opalescent enamel, chromatic enamel, translucent dentin, and opaque dentin.16 There are many options that can be used to achieve proper thickness of the enamel shade material. Sample disks of various thicknesses of composite can be used to evaluate the chromatic results.21 For translucency to be observed, it is important for the enamel shade material to be between 0.5 mm and 1.0 mm thick.22
Because it can be clinically difficult to perform a good layering technique to reproduce enamel, the index cutback technique provided an easier solution. Another possibility would have been to use an injection molding technique with a flowable composite resin. This technique provides a quick way to duplicate a wax-up. New, more highly filled flowable composite formulations are available that demonstrate higher strength, wear resistance, and color stability. However, further research is needed to ascertain the long-term efficacy of these materials when used to create injection-molded restorations.23 In addition, this technique lacks the ability to develop precise dentin and enamel layers.
When compared with placing ceramic restorations, the use of the index cutback technique to restore anomalous lateral incisors with composite is a faster solution regarding the number of appointments required. There is also no need for laboratory work or provisional restorations, and it can be performed at a lower cost for the patient. When the restoration of anomalous lateral incisors is to be followed by orthodontic treatment, the index cutback technique is advantageous because bonding braces to composite restorations is much easier than bonding them to ceramic ones.24,25
In this case, communication with the orthodontist was critical to the predictability of the outcome. The esthetic deficiency created by peg-shaped lateral incisors is due to their malformation and the resulting spaces between the anterior teeth.26 The decision to restore peg-shaped lateral incisors prior to orthodontic treatment allows for the creation of ideal mesiodistal spaces. If the spaces were closed with orthodontic treatment prior to correcting the dimensions of the lateral incisors, they would have been too narrow and would have led to an unpleasant outcome. In addition, the arch shape, facial contours, and occlusion may have been affected.
